1-Wire {#1-Wire}
This page is about 1-Wire stuff.
Connectors RJ-11
6P4C
Female RJ-12 Connector. Front view.
| Pin | Signal |
|---|---|
| 1 | N.C. |
| 2 | +5V |
| 3 | 1W |
| 4 | GND |
| 5 | +12V |
| 6 | N.C. |
1-Wire Dongel
Shematics Board
1-Wire Temperatur Sensor
Dimensions: 50mm x 36mm
Connectors: 2x 6P4C
Download Eagle schematics and G-Code files: DS182x Temperatur Sensor Board
Tooldiameter is 0.1mm for etching, 0.8mm drilling and 2.0mm for milling.

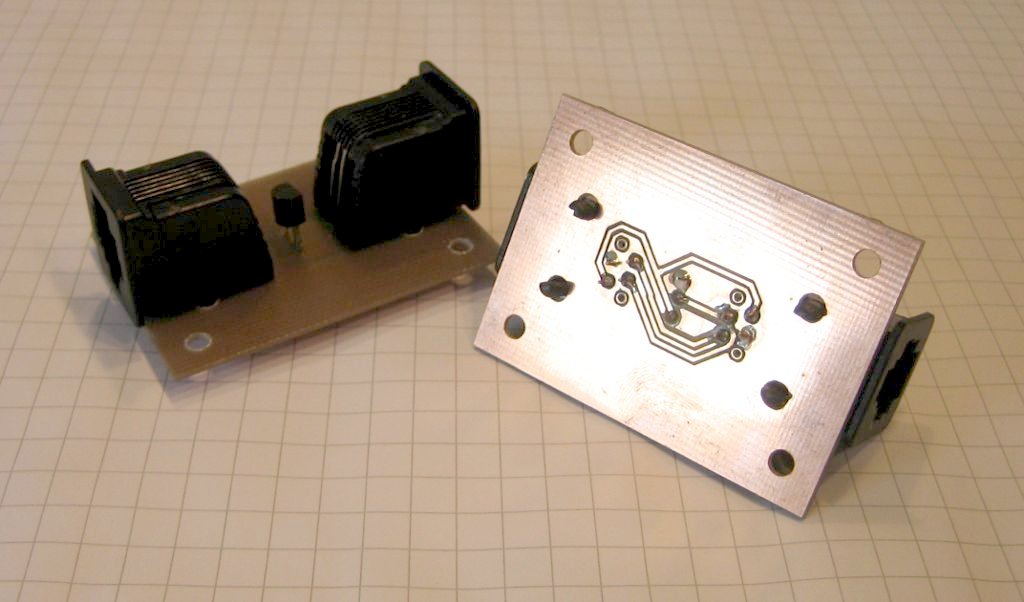

Finished Board for DS1820 and DS1822
Datasheets
DS18B20 1W Digital Thermometer
DS1822 1W Eco Digital Thermometer
