Version 3
Features of the current version
-
ISEL-Controller
-

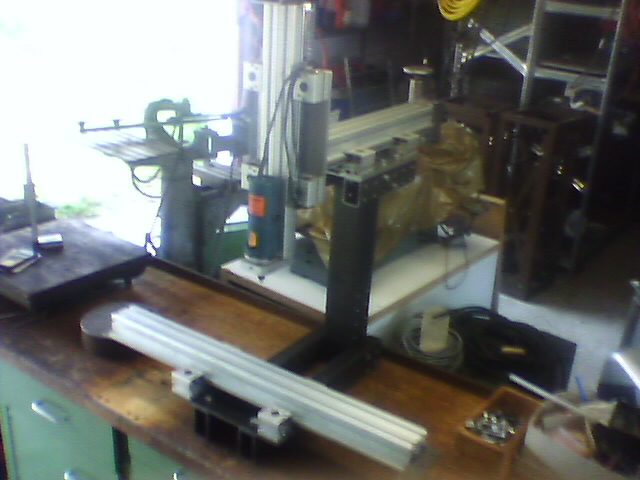

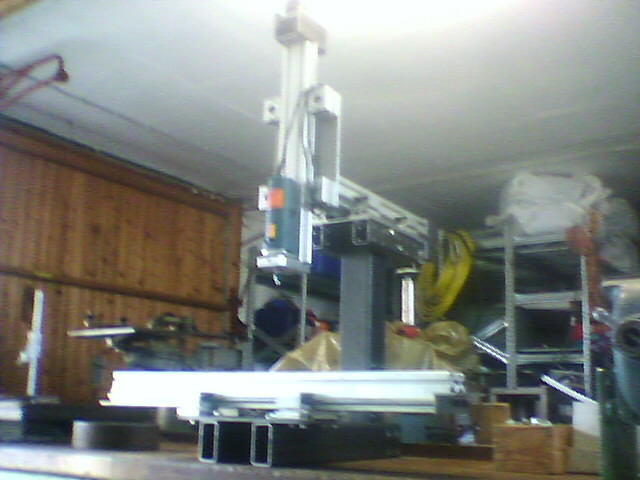

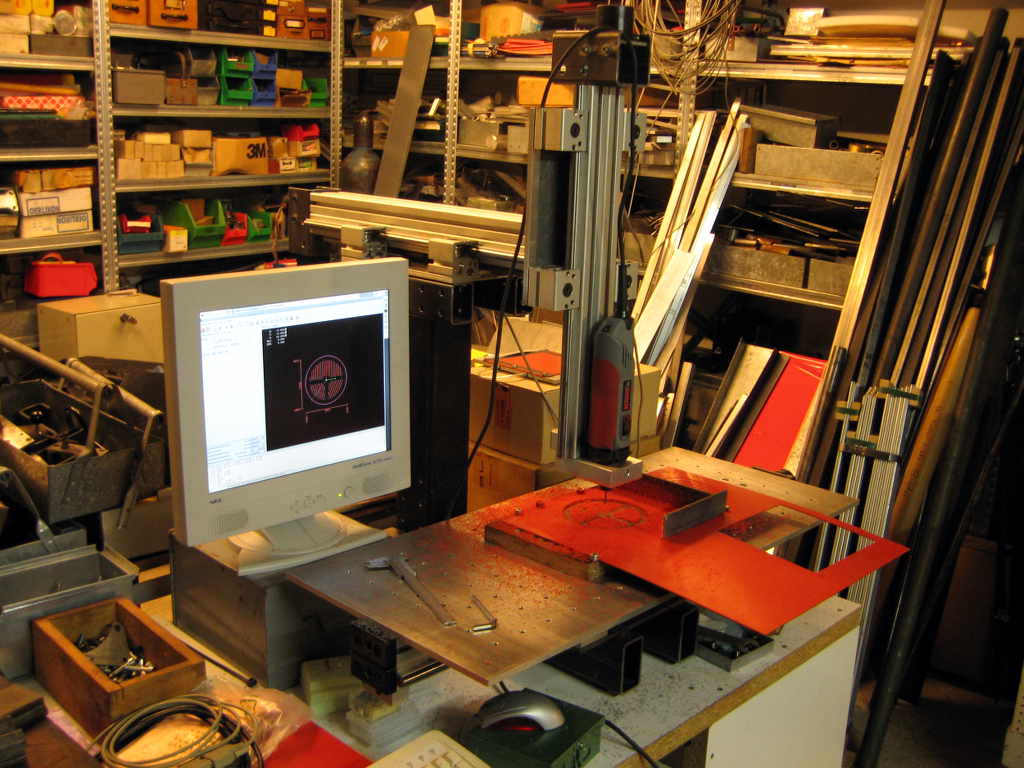

Complete rebuilt from gantry-design to C-shape.

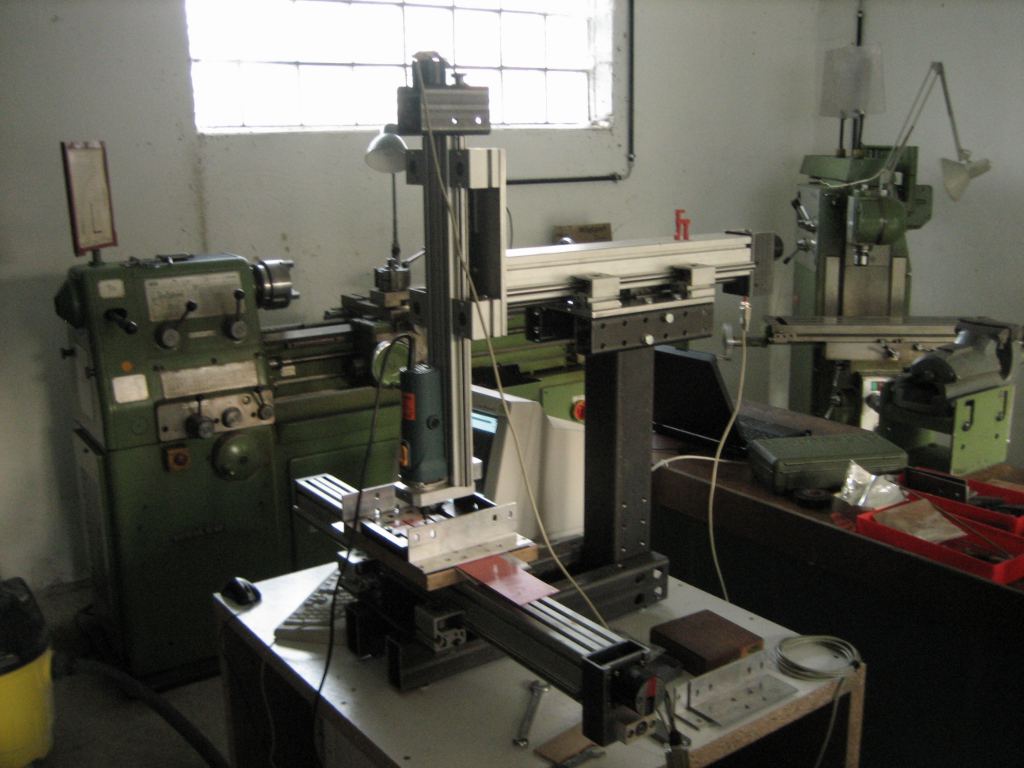

CNC Mill with table and Nordex spindle.

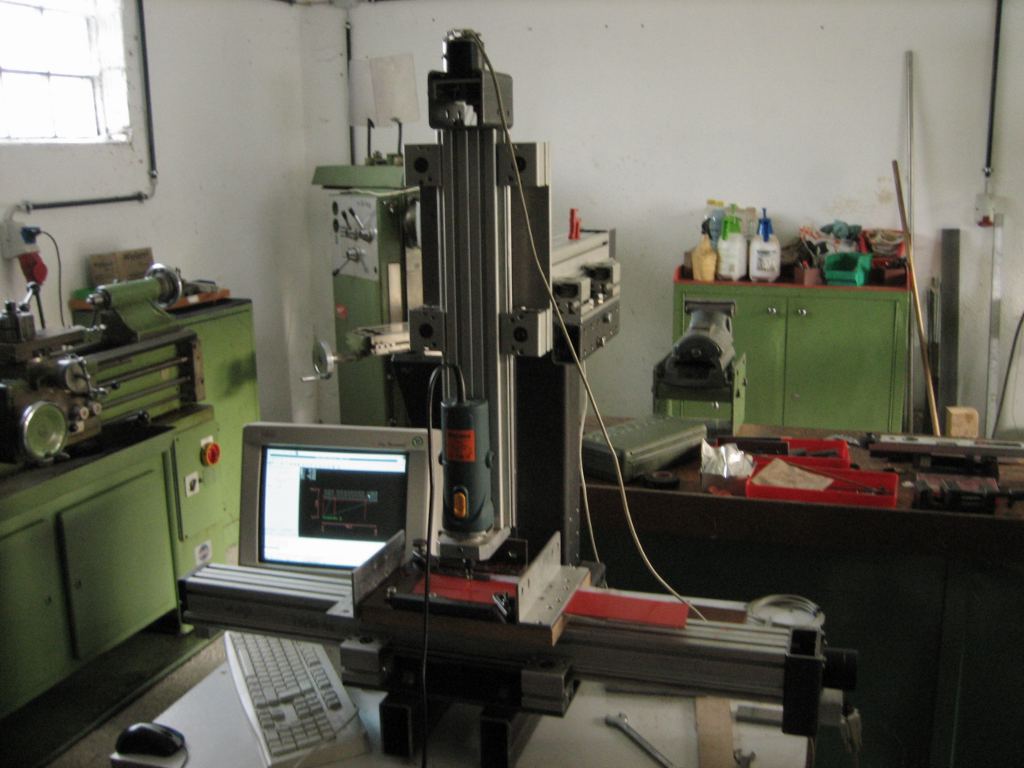

CNC Mill with new Kress FMS 1050 spindle.

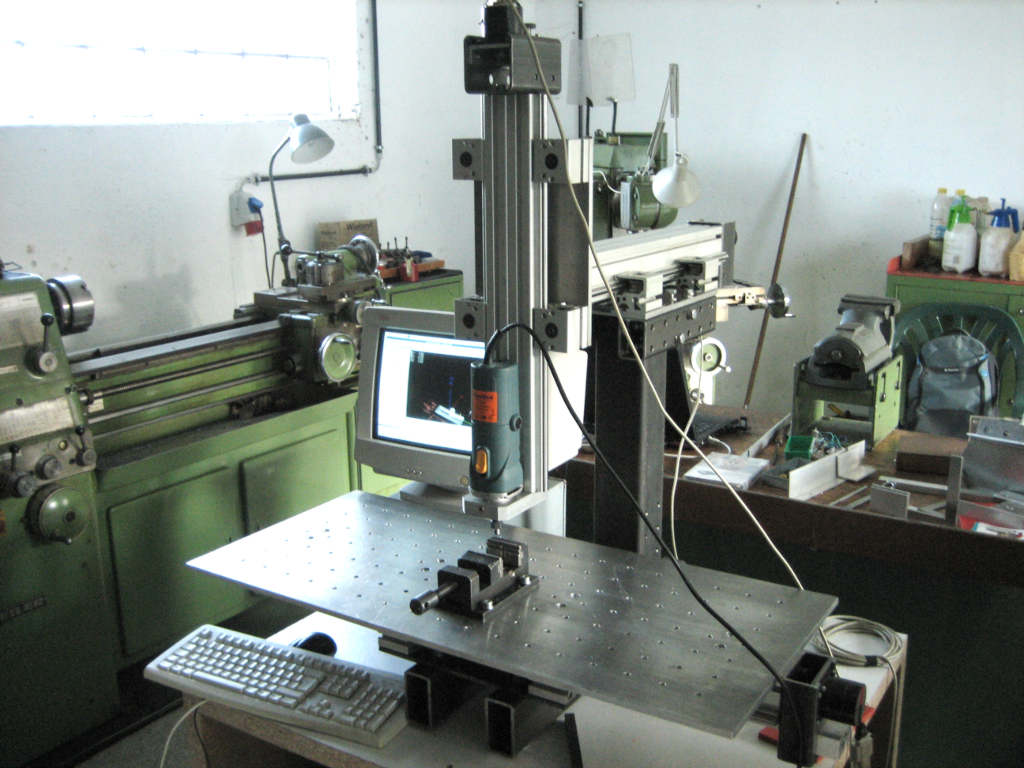

Tabel size is 900mm x 400mm. Spacing of the M8 mounting holes is 50mm.
Travel
X 600mm
Y 300mm
Z 250mm
Version 3.0 work in progress.
Version 2

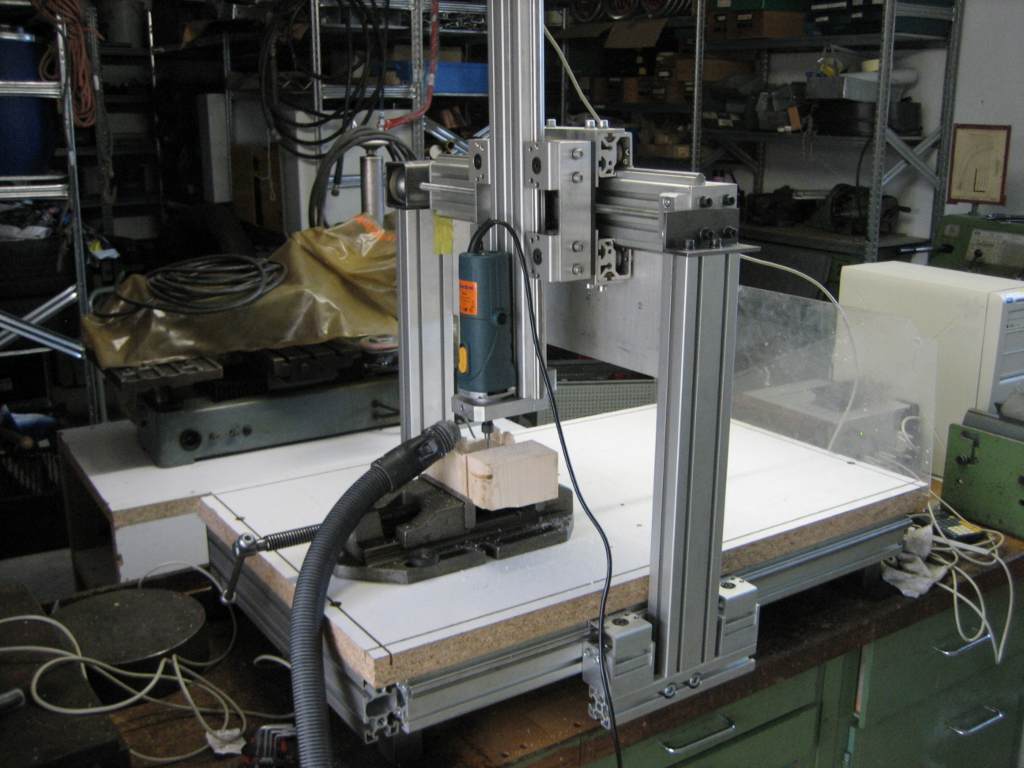

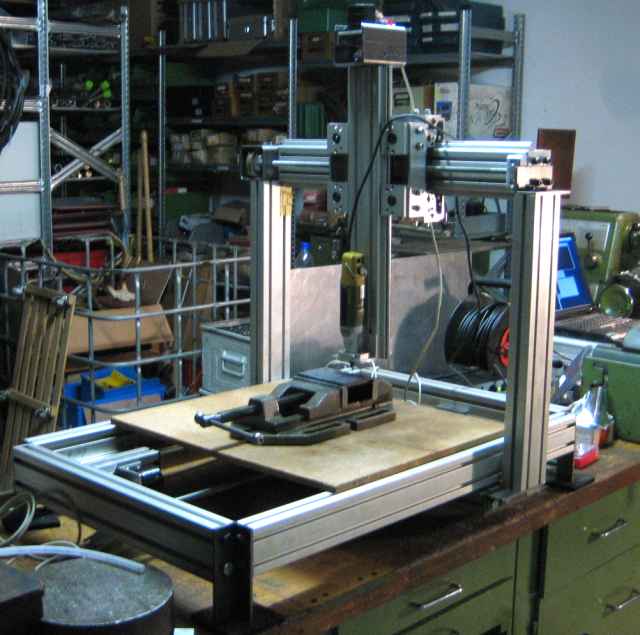

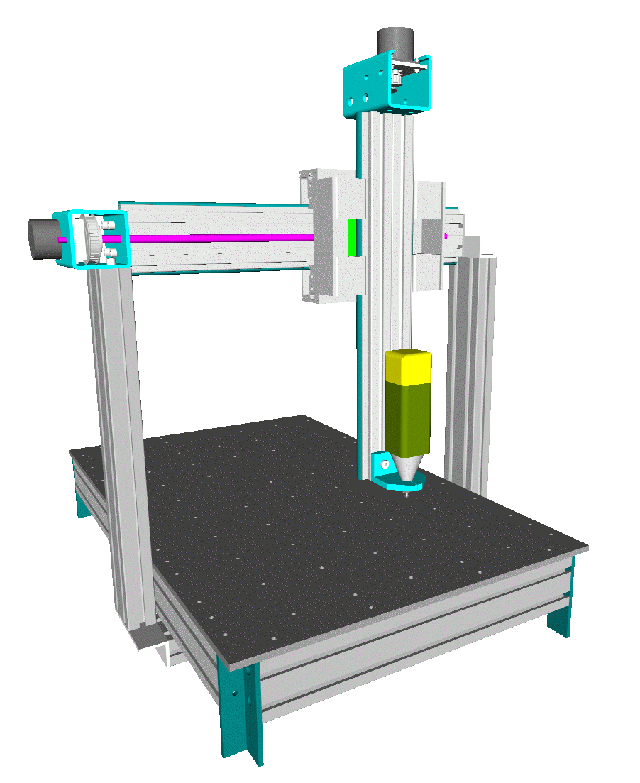

An older version of the CNC Mill. This Version had some problems with vibriation in the gantry. The stability of the X-Axis was better then with the original version but still not satisfying.

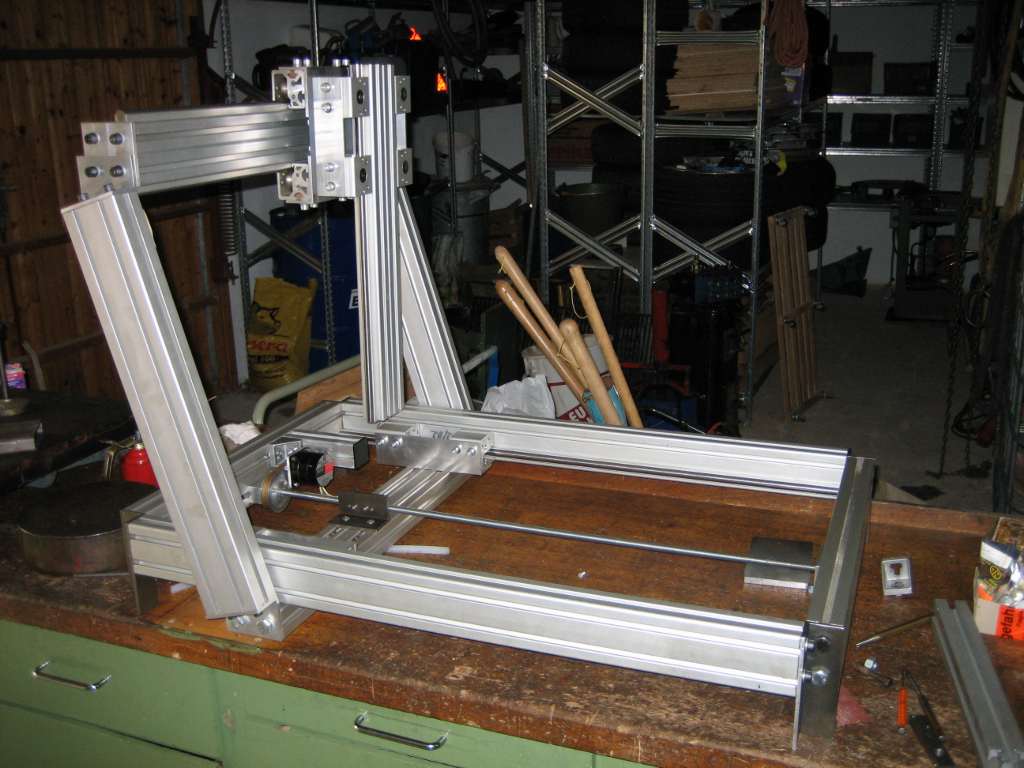

Rebuild Version 1.0
With Table
Rebuild X-Axis
Video of CNC-Mill in action part 1
Video of CNC-Mill in action part 2
The original design
Controller: SMC-800
The SMC-800 controller is not realy compatible with LinuxCNC. This desing hat problems with the stability of the X-Axis.
Version 1.0

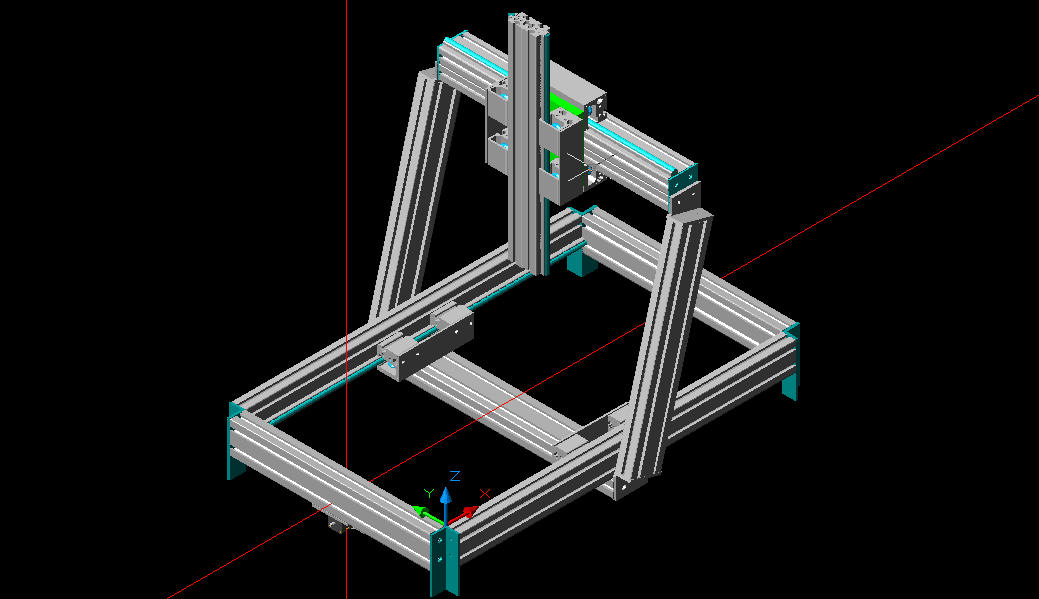

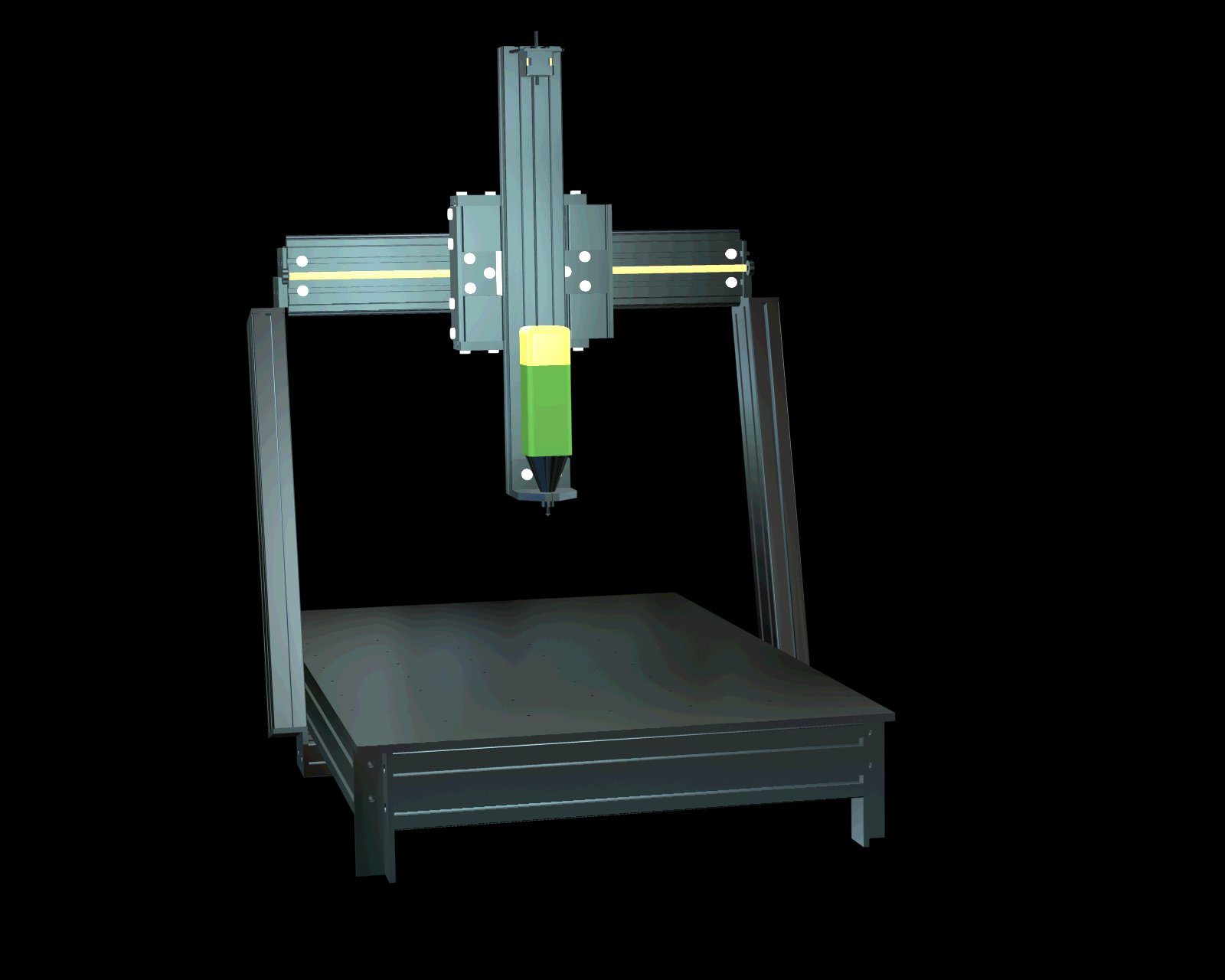

CAD-Drawing of Version 1.0
CAD-Drawing of Version 1.0
