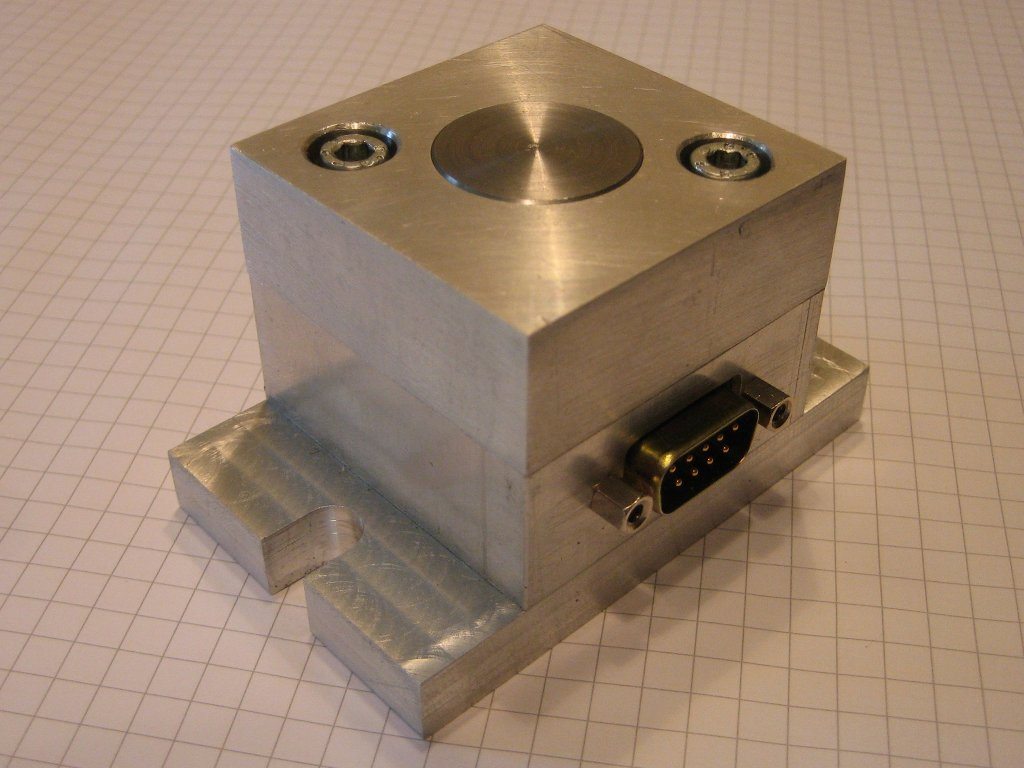

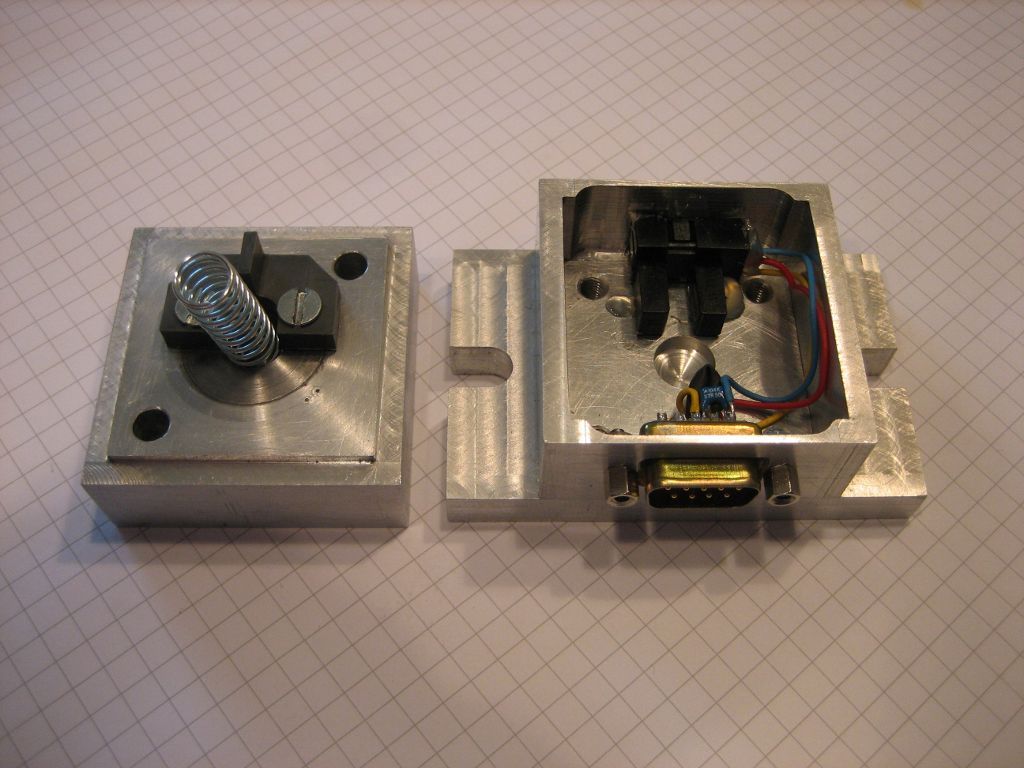

Tool-Length Sensor
Technical Data
- Size (LxWxH): 80mm x 50mm x 48mm
- Base Plate: 80mm x 50mm x 10mm with 8mm notch
- Case (LxWxH): 40mm x 50mm x 38mm
- Sensor Area (Ø): 24mm
Jumper Settings
Pinout Sub-D-9-M
Output of pin 9 is used as Ref.Sw. signal.
| Pin | Signal Out |
|---|---|
| 1 | N.C. |
| 2 | N.C. |
| 3 | N.C. |
| 4 | N.C. |
| 5 | N.C. |
| 6 | N.C. |
| 7 | GND |
| 8 | +5V |
| 9 | Output |
Jumper settings on ISEL Stepperdriver
| Jumper | Signal | Status |
|---|---|---|
| 6 | Pin 8 (SubD-9) Output to +5V/50mA | closed |
| 7 | Pin 8 (SubD-9) Output Ref.-Switch contact N.O. | open |
| 8 | Ref.-Switch debounced by Flip-Flop | open |
| 9 | Ref.-Switch connected directly to output a16 | closed |

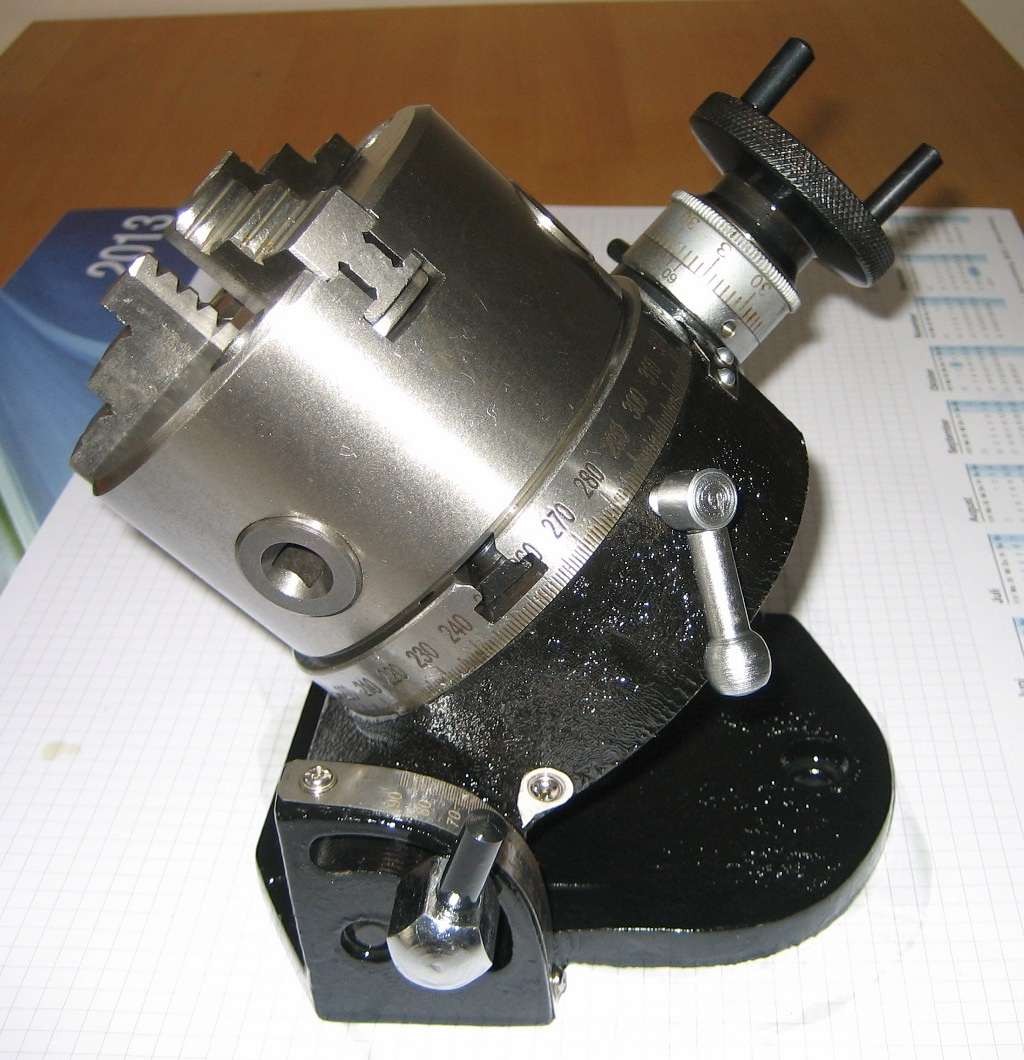

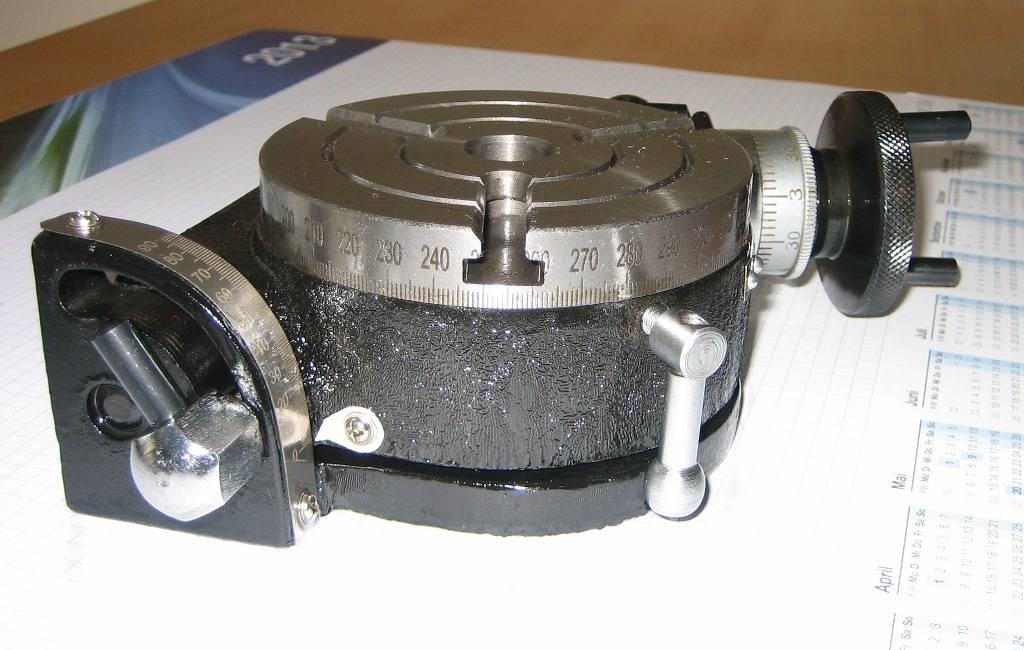

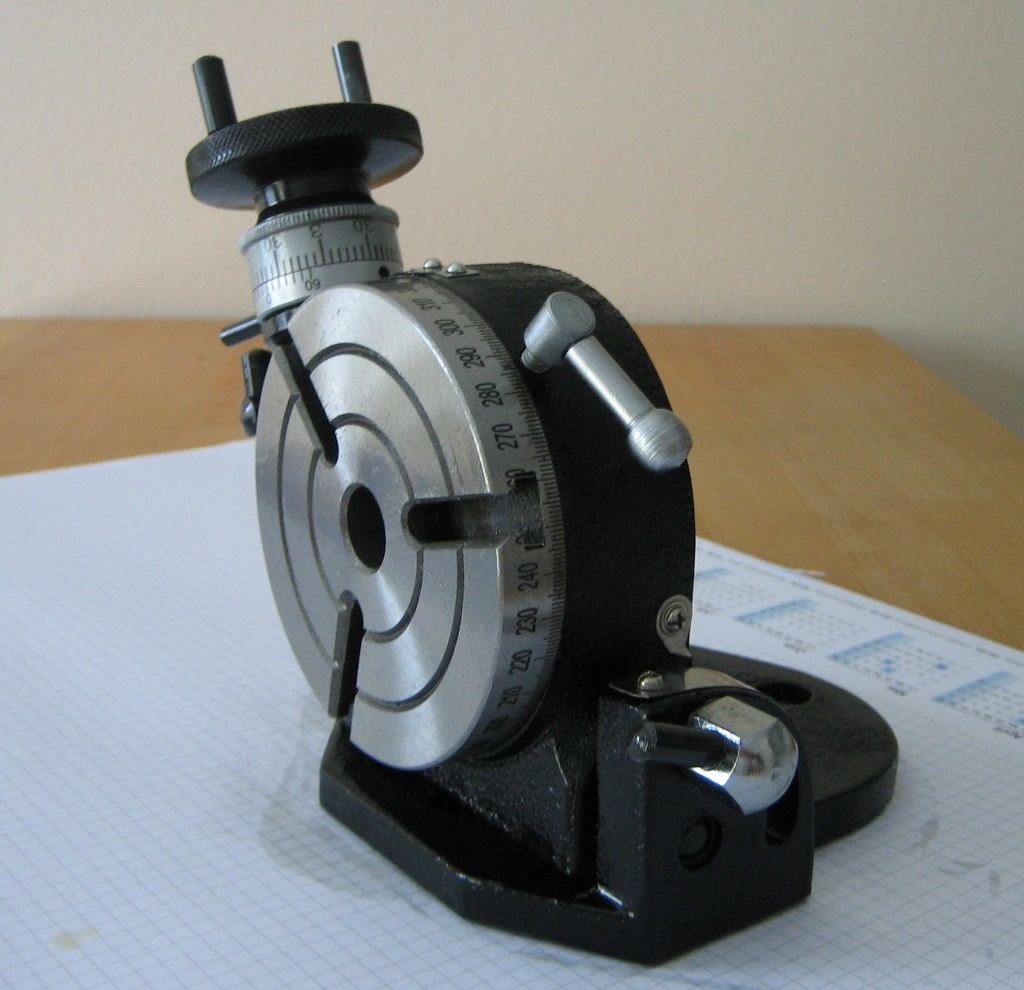

Rotary Table
To be convertet to CNC.
- Diameter 100mm
- Tilds up to 90°
- Base: 145mm x 126mm
- Mounting Holes: 10mm; 110mm appart
- Height in flat positon: 66mm
- One revolution of handle equals 10°

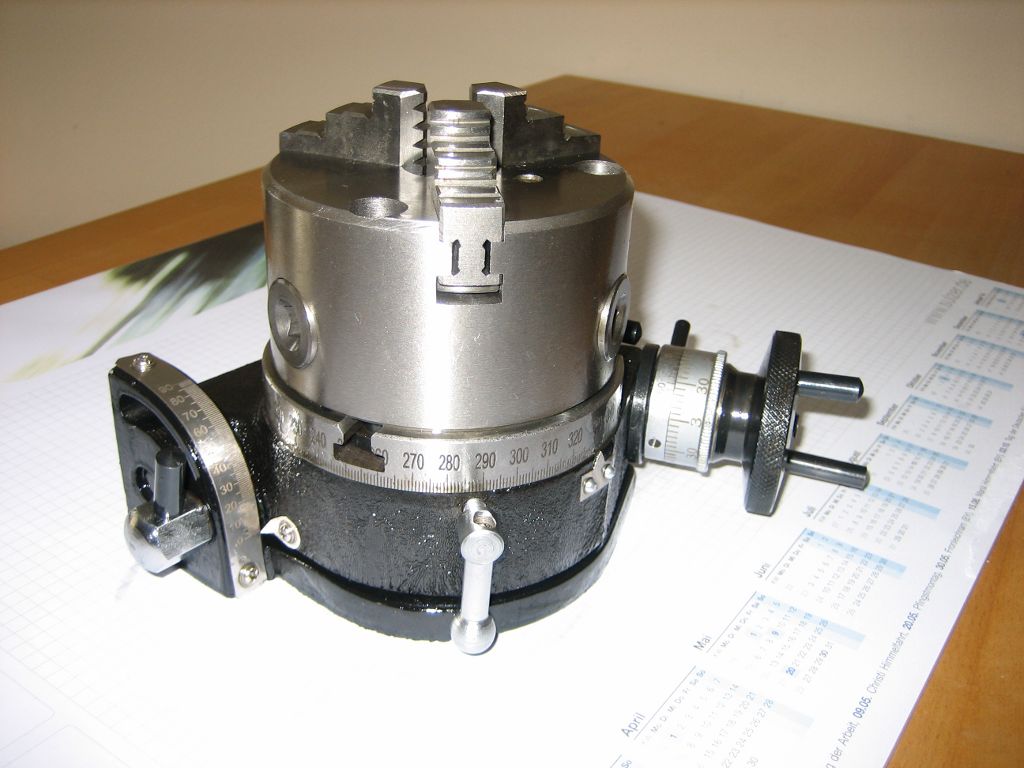

With mounted 3-jaw chuck.
