GPS-Receiver
Accelerometer
LIS3L02AS4
3Axis - 2g/6g Linear Accelerometer
Package SO-24
Technical Data
| Ratings | Value | Unit |
|---|---|---|
| Acceleration range (FS to GND) | +-2.0 | g |
| Acceleration range (FS to Vdd) | +-6.0 | g |
| Bandwidth (X and Y axis) | 4.0 | KHz |
| Bandwidth (Z axis) | 2.5 | KHz |
| Supply voltage | -0.3 to 6 | V |
| Input voltage on any control pin (FS, PD, ST) | Vss-0.3 to Vdd+0.3 | V |
| Acceleration (Any axis, Powered, Vdd=3.3V) | 3000g for 0.5ms | |
| Acceleration (Any axis, Unpowered) | 3000g for 0.5ms | |
| Operating Temperatur Range | -40 to +85 | °C |
| Storage Temperatur Range | -40 to +105 | °C |

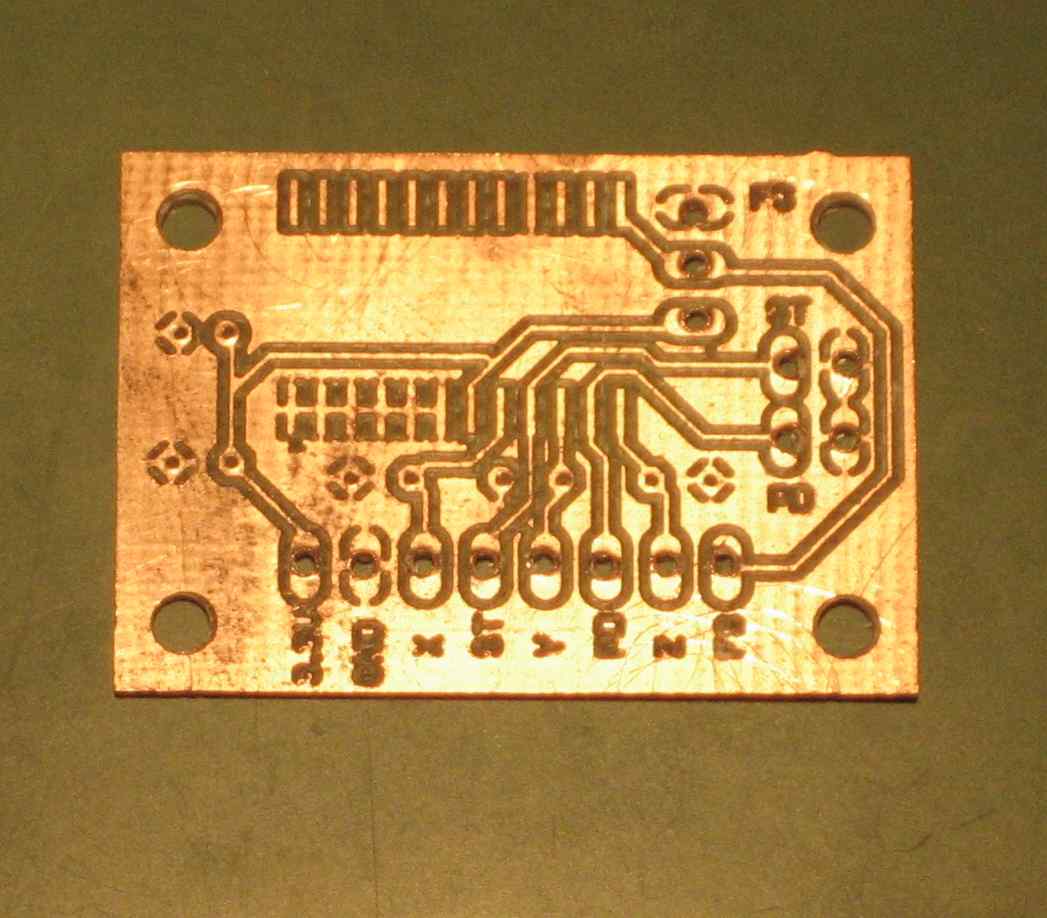

Accelerometer board

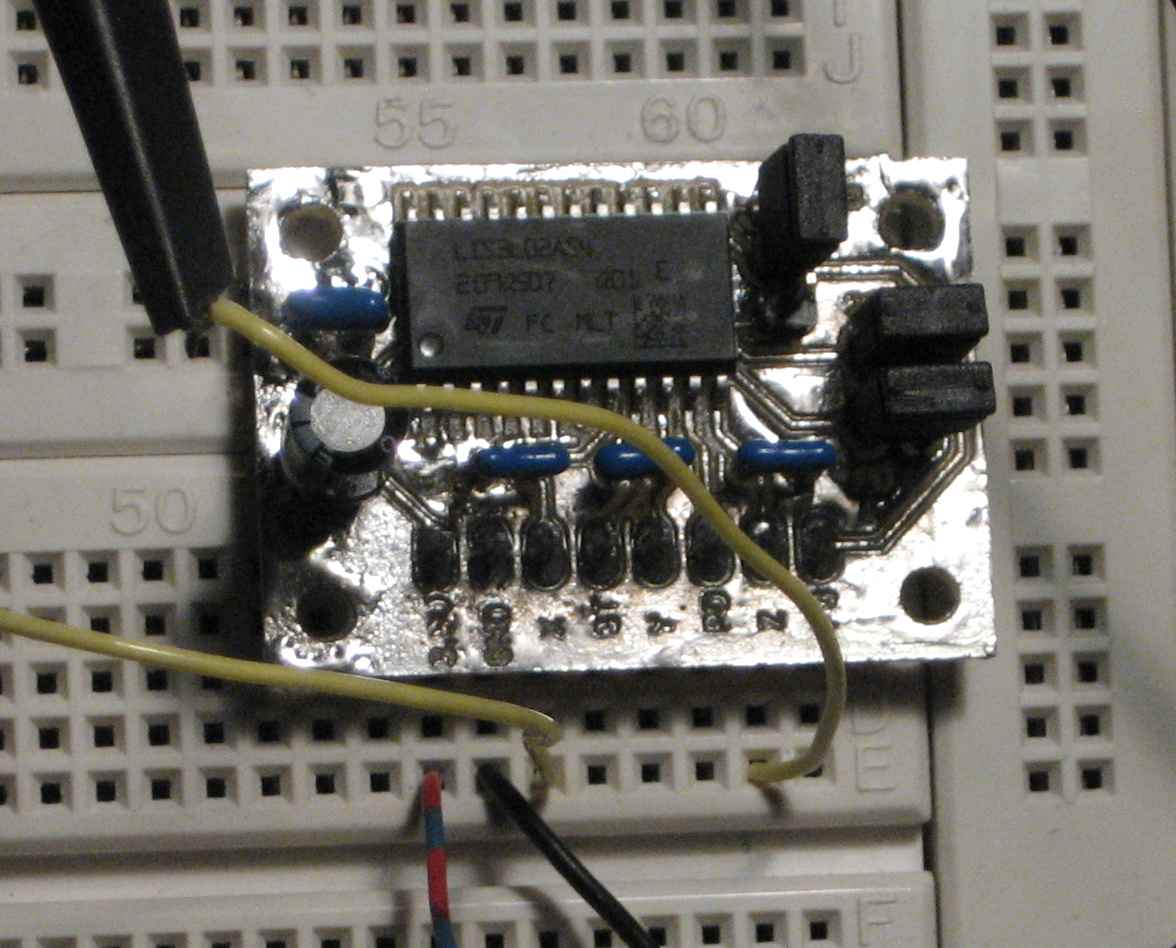

Accelerometer board finished

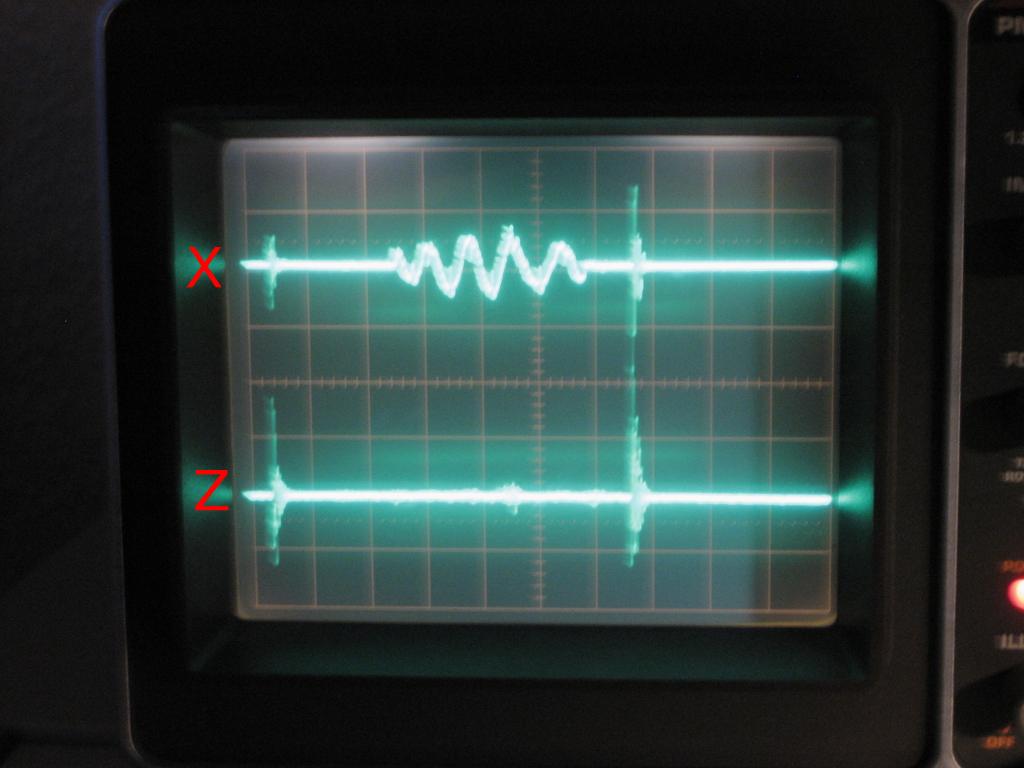

Accelerometer board test
MEMS-Gyroscope
Magnetic Compass
Dual-axis magnetic sensor module.
Features:
- +- 5 gauss
- Low power consumption: typically 0.4mA@3V with 50 measurements per second
- Power up/down function available through I2C interface
- SET/RESET coil drive
- 512 counts/gauss
- I2C Slave, FAST (<=400 KHz) mode
- 1.8V compatible IO
- 2.75 to 5.25V wide power supply operation supported
- operating temperature range -40°C to +85°C
HDMM01 Datasheet HDMM01 Description
